MS35
High performance and reliability
Video Introduction >>
Scroll
Description:
Agrade M.2 SATA SSD Module is the storage device based on NAND flash memory technology. This product Compliant with Serial ATA standard interface is suitable for data storage media and code storage device for embedded system and boot disk. Agrade M.2 SATA SSD Modules have two form factors 2242 and 2280 with B-M key. By using M.2 SATA SSD Module, it is possible to operate good performance for the systems, which have SATA interface. With small form factor, the applicable appliance can add or install SATA storage device on its Mother Board or Complete set.
Application Fields:
n Netbook, mini PC, mobile PC.
n Other machines and Equipments with Serial ATA Interface.
Features:
* SATAIII 6.0Gb/S
* Advanced Wear Leveling and Error Checking and Correction
* P/E：SLC(60000) aSLC (20000) MLC(3000) 3D TLC(3000)
* Excellent Power Shield function
Detailed introduction
download PDF
Video Introduction
| Product Name | Industrial M.2 SATA SSD |
| series | Reliable Series |
| model | MS35 |
| capacity | SLC:4GB~64GB MLC:4GB~512GB aSLC:2GB~256GB 3D TLC:64GB~1TB |
| feature | * SATA III * 先进的损耗平衡功能(Wear leveling)和灵活的96/1KB BCH ECC * 重复循环檫写次数：SLC(60000次) MLC(3000次) 3D TLC(3000次) * 低功耗，高可靠性 |
| Shock/vibration | 1500/20 |
| MTBF(h) | 2,000,000 |
| Working Voltage | 3.3V |
| Operating Temperature | 常温：0℃ ~ 70 ℃ 宽温：-40 ℃~85 ℃ |
| Storage temperature | -55℃ ~95℃ |
| Maximum read and write speed | 读取速度：200MB/S 写入速度：120M/S |

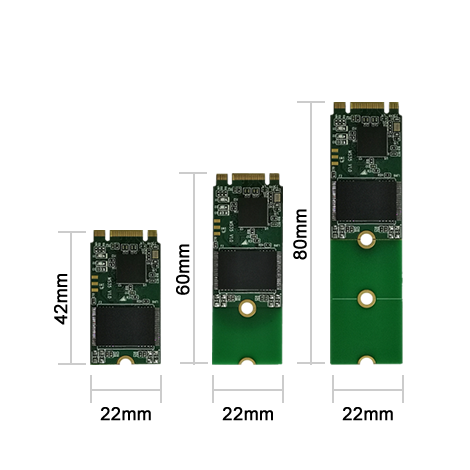

| Overall dimensions | 22mm(W)x42 / 60 / 80mm(L)x3.0mm(H) |
