DH35

Pluggable∣highly stable∣ different structures

Video Introduction >>

Scroll

Description:

Agrade DH35 Series is DiskOnModule (DOM) based on FLASH memory controller technology. This product complies with 44 PIN IDE (ATA) standard interface and is suitable for data storage media, code storage device, or boot disk for embedded systems, such as PC or other electric equipments. This DOM is equipped with NAND FLASH memory. With small form factor, the applicable appliance can add or install this IDE storage device on its Mother Board or Complete set.  Agrade DH35 Series intelligent controller manages interface protocols, data storage and retrieval as well as ECC, defect handling and diagnostics, power management and clock control.



Features:

* High reliability, low power consumption

* Comply with PATA&IDE (ATA) interface specification

* P/E:SLC(60000)     MLC(3000)   aSLC(20000)

* Master / Slave Switch

* Advanced Wear Leveling and Error Checking and Correction

Detailed introduction download PDF Video Introduction
Product NameiDiskOnModule(DOM)
seriesReliable Series
modelDH35
capacitySLC:128M~16GB
MLC:4GB~128GB
aSLC:2GB~64GB
feature* 高可靠性,低功耗
* 符合PATA IDE (ATA-7)接口规范
* 重复循环檫写次数:SLC(60000),MLC(6000)
* 主从盘转换开关
* 先进的损耗平衡功能(Wear Leveling)和错误检查纠正技术(ECC)
Shock/vibration1500/20
MTBF(h)2,000,000
Working Voltage3.3V /5V ± 5%
Operating Temperature常温:0℃~70℃    宽温:-40℃~85℃
Storage temperature-55℃~95℃
Maximum read and write speed读取速度:112.3 MB/S   写入速度: 62.7 MB/S
Overall dimensions48.4mm(L)×27.3mm(W)×5.8mm(H)

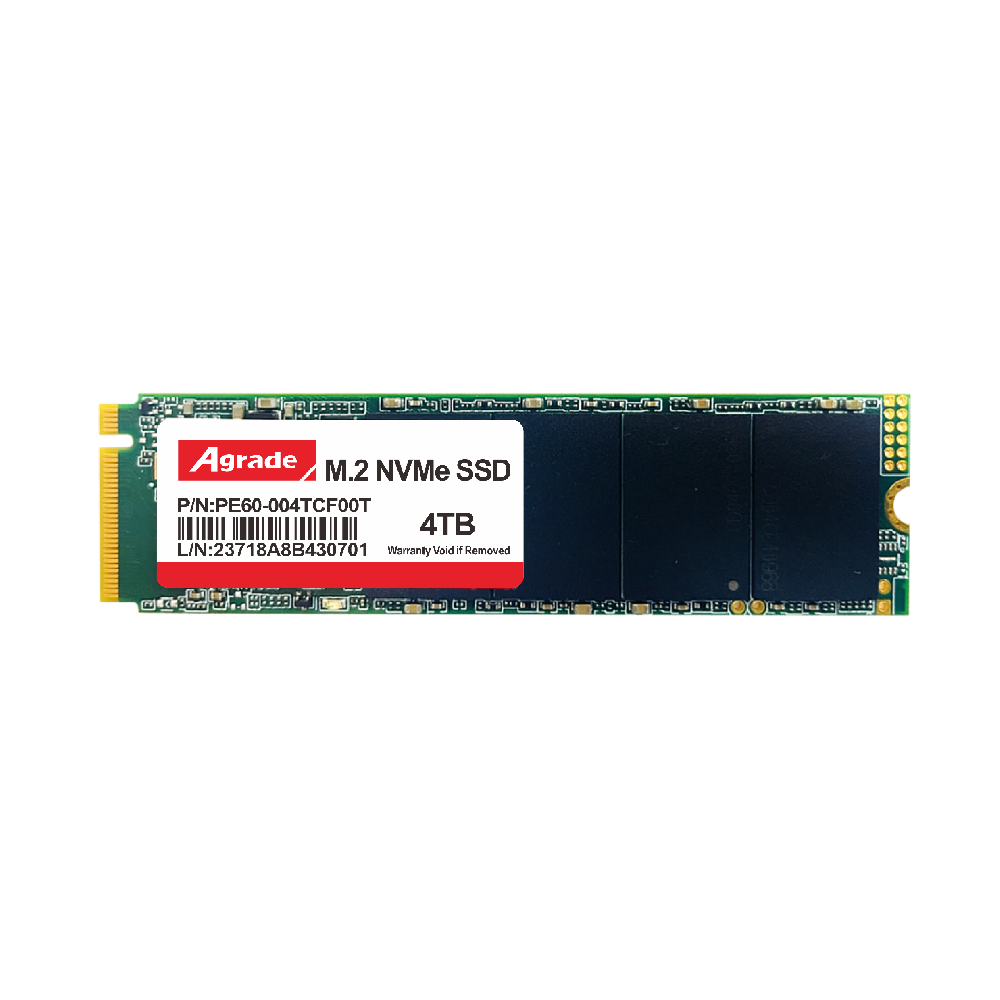

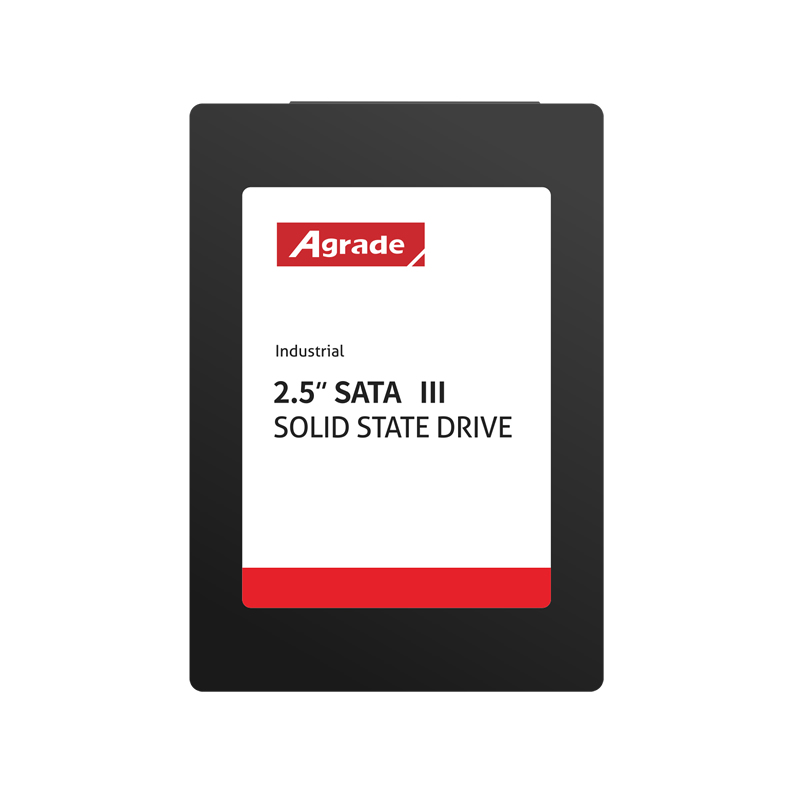

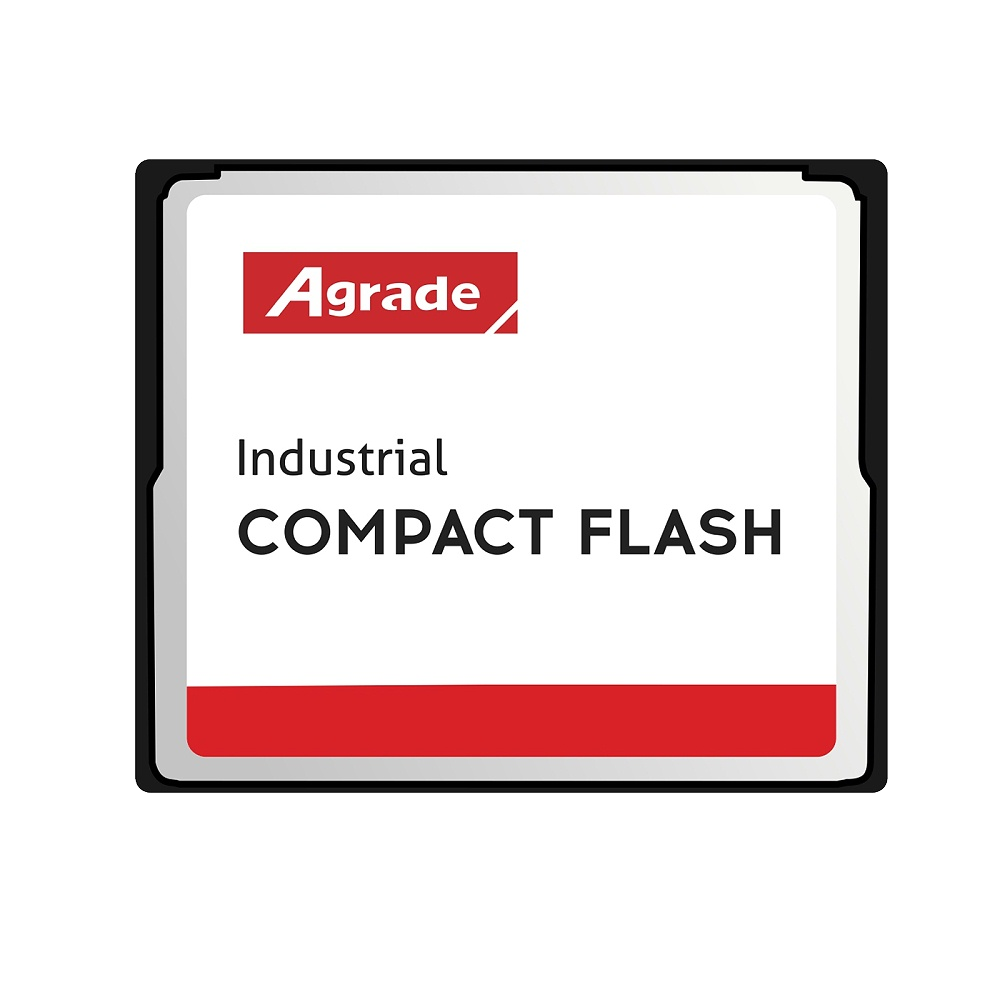

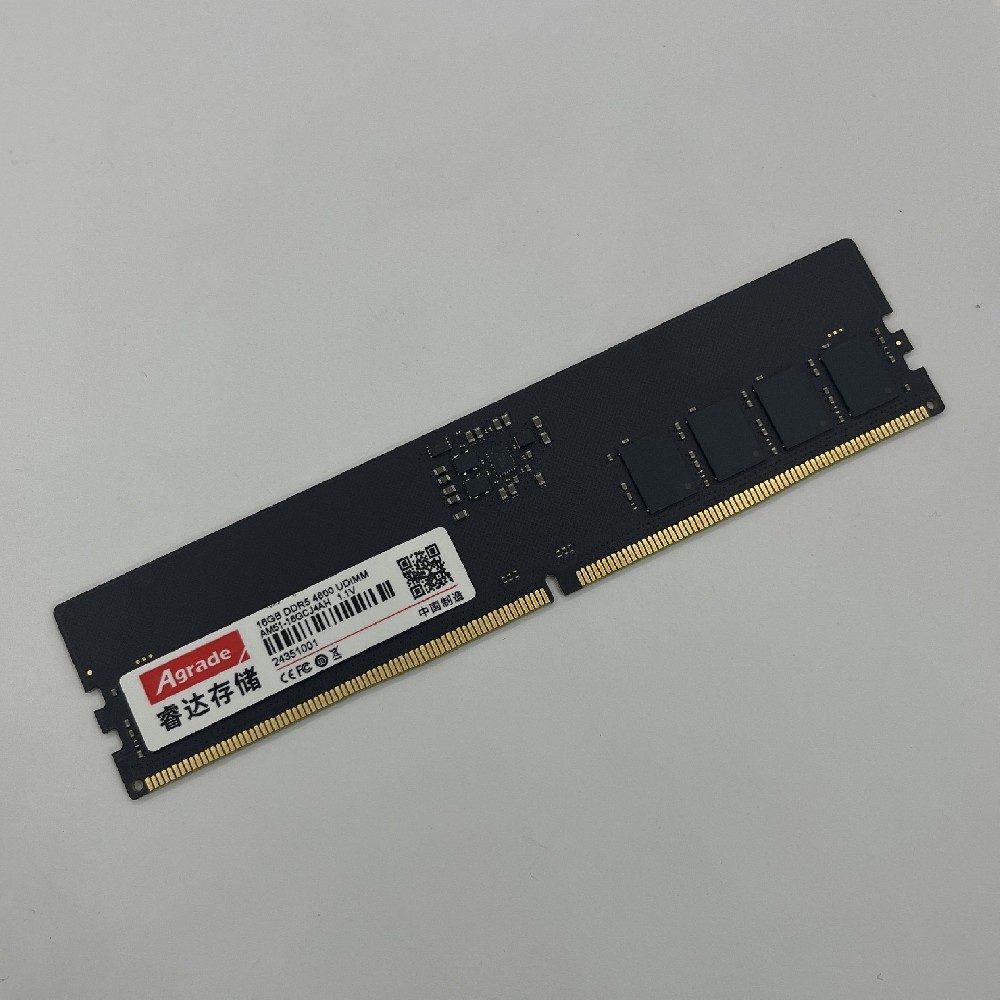

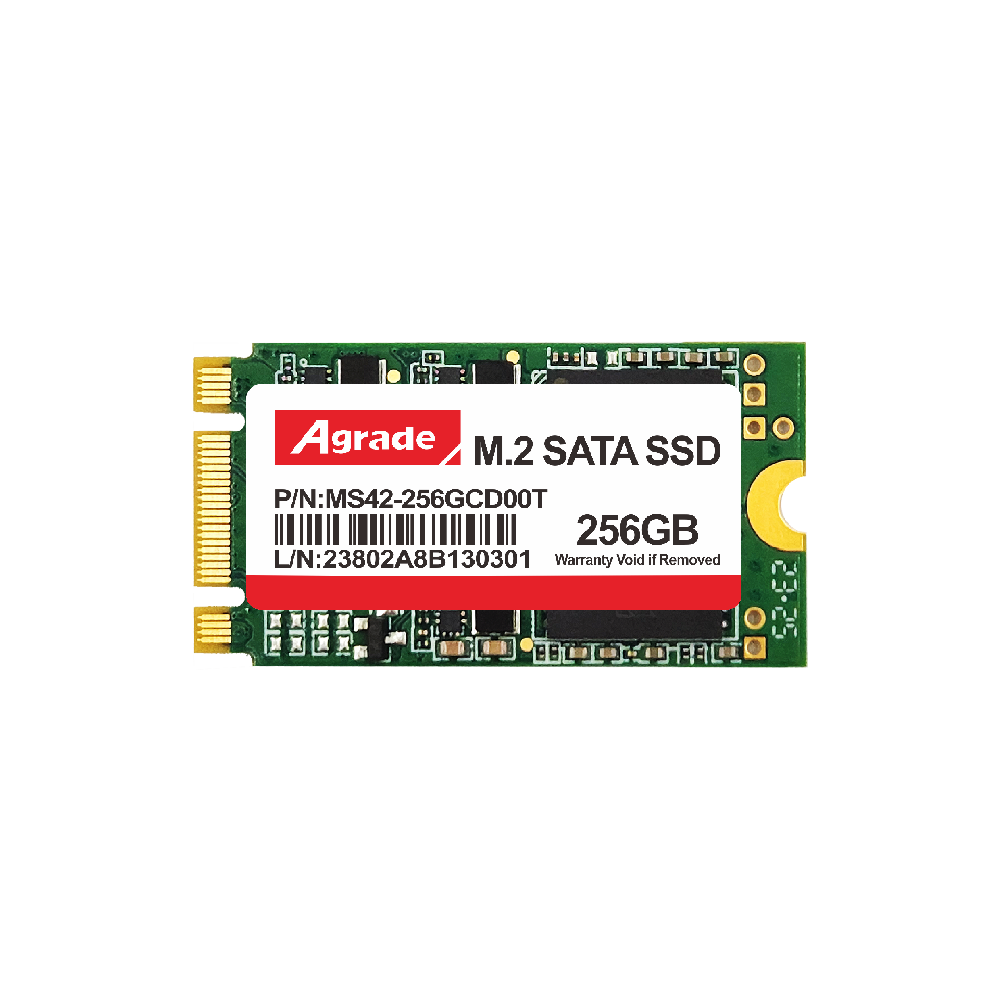

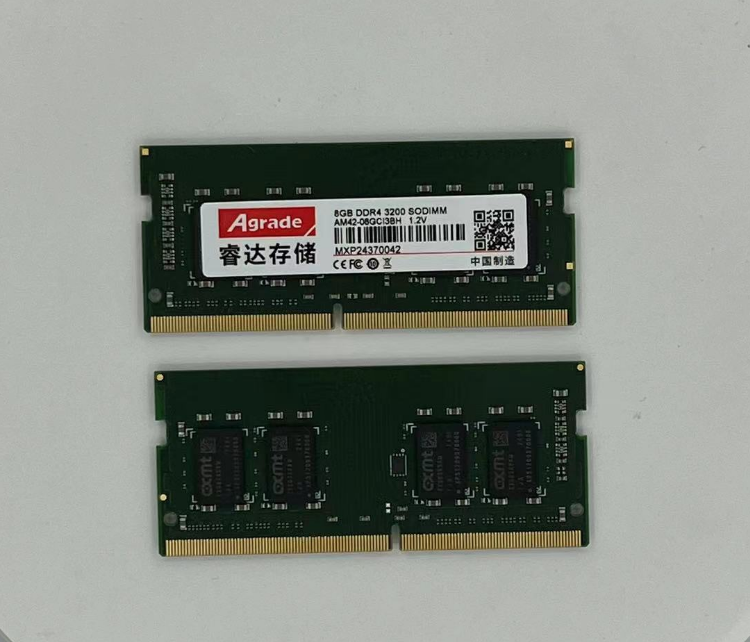

Product recommendations
