PE50
High performance and reliability
Video Introduction >>
Scroll
Description:

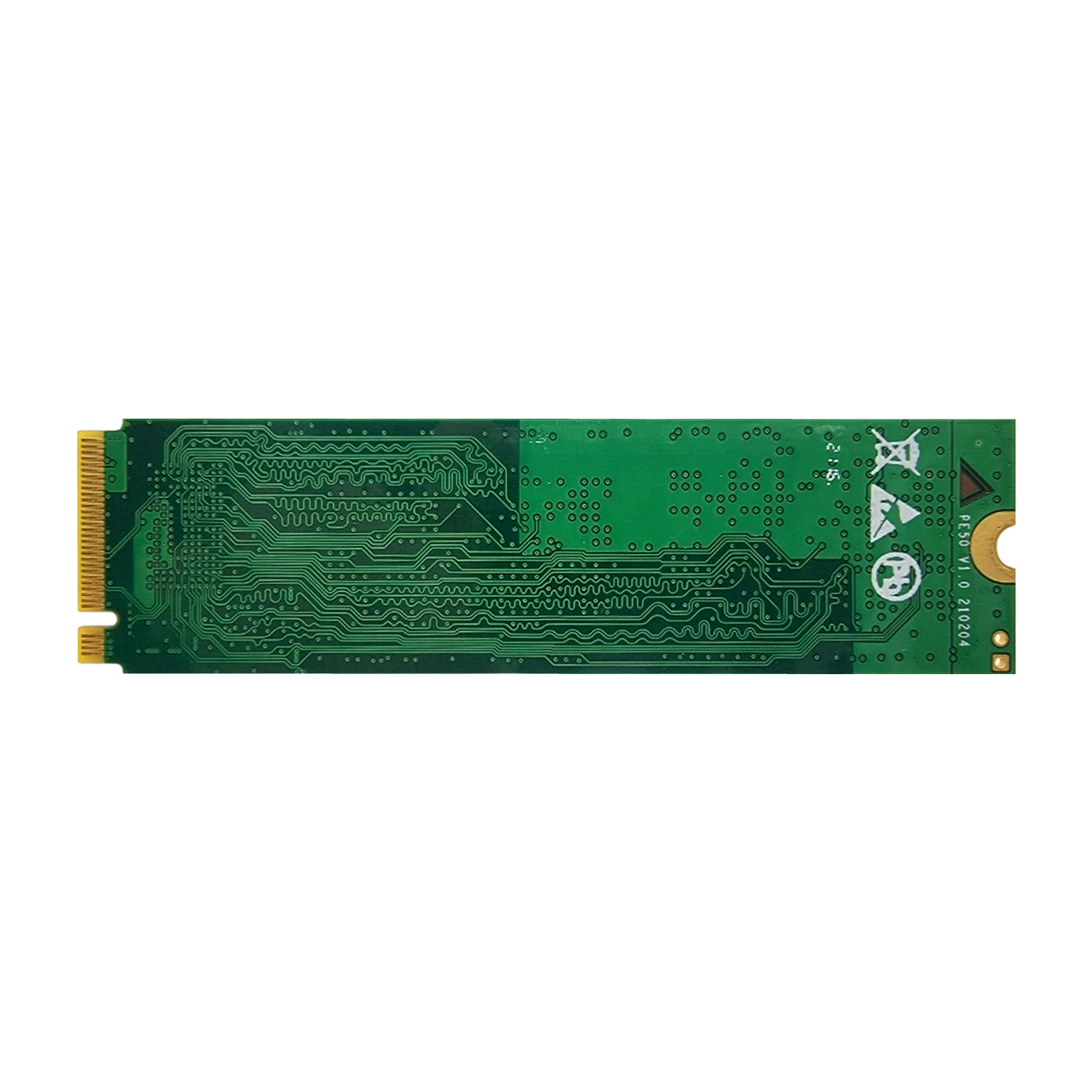

Agrade M.2 PCIe NVMe SSD Module is a DRAM-less SSD designed as the standard M.2 form factor with PCIe interface based on NAND flash memory technology. This product supports PCIe Gen III x 4, and it is compliant with NVM 1.4 providing excellent performance. Moreover, it adopts TLC and QLC NAND Flash providing high endurance and reliability. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-toend Data Path Protection that secures the data transmission between host system and NAND Flash.
Features:
PCIe Gen.III X4 interface
Support S.M.A.R.T
P/E：3D TLC(3000)
DRAM-less architecture supporting HMB with two namespaces
Advance 4K LDPC (ECC) engine
Complaint with NVME Standard 1.4
Detailed introduction
download PDF
Video Introduction
Product Name | Industrial M.2 NVMe SSD |
Series | Reliable Series |
Model Name | PE50 |
Capacity | 3D TLC: 128GB~2TB |
Feature
| * PCIe Gen.III X4 interface |
* Support S.M.A.R.T | |
* P/E：3D TLC(3000) | |
* DRAM-less architecture supporting HMB with two namespaces | |
* Advance 4K LDPC (ECC) engine | |
* Complaint with NVME Standard 1.4 | |
Shock / Vibration | 1500/20 |
MTBF(h) | 2,000,000 |
Operating Voltage | 3.3V |
Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
Storage Temperature | -55℃ ~95℃ |
Sequential R/W Performance(Max) | Read：3200MB/S Write：2800M/S |
Dimension(LxWxH) | 22mm(W)x80mm(L)x2.5mm(H) |
